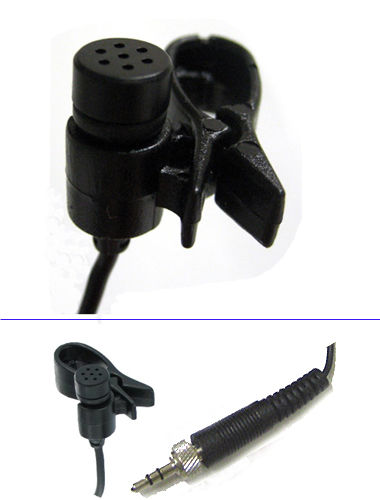

AV-JEFE TCM141 Lapel Tie Clip Microphone_Black Color
AV-JEFE TCM141 is compact, miniature, broadcast quality condenser lavalier microphone. Detachable tie-clip allows easy mounting, offering flexibility, ease and comfort to the user. Specially designed slide-on type clip for easy wire arrangement.
Features
- Great Quality Lapel Mic.
- With Patented Slides-On Clip.
- Capsule Dimension: 1/4" in diameter
- Clip Dimension: 1" in length (main body of clip)
- 1pc windscreen included
- NOT for direct use with mixers / camcorders
(For lapel mic that works directly with mixers/camera/camcorders, please search Model# TCM128.)
Specifications
- Element: Back Electret Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 30 Hz ~ 18,000 Hz
- Sensitivity: -65 dB +/- 3dB
- Impedance: 1000 ohm +/- 30%
- Operating Voltage: 1.0V- 10V D.C.
- Dimension: 1/4" in diameter (capsule), 1" in length (main body of clip)
Model: TCM141-BK-LS
- Connector: 3.5mm Locking Plug for Sennheiser Wireless Systems
- Compatible with Sennheiser models: Evolution Series, EW100, EW300, EW500, G2, G3, SK 1093, SK 20
Model: TCM141-BK-Shure4P
- Connector: TA4F Mini 4 Pin XLR for Shure Wireless Systems
- Compatible with Shure models: UC1, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, QLXD1, SLX1, ULX1, ULXD1, UR1, UR1M
- NOT for Telex transmitters.
Model: TCM141-BK-ATH4P
- Connector: Hirose Mini 4 Pin for Audio-Technica Wireless Systems
- Compatible with Audio-Technica Transmitters: ATW-T1801, ATW-T27, ATW-T31, ATW-T51, ATW-T201, ATW-T210, ATW-T210a, ATW-T310, ATW-T310b for use with 200 Series, 1100 Series, 1400 Series, 1800 Series, 2000 Series, 2000A Series, 3000 Series, 3000A Series
- NOT COMPATIBLE WITH Audio-Technica Transmitters: T35, T75, T211, T601, T701, 1000 Series, 1200 Series, 4000 Series, 5000 Series, 7000 Series
Model: TCM141-BK-AKG3P
- Connector: Mini 3 Pin / TA3F Connector for AKG Wireless Systems
- Compatible with AKG models: DPT700, PT40, PT45, PT60, PT61, PT80, PT81, PT400, PT450, PT2000, PT4000, PT4500
Model: TCM141-BK-Mpr
~~ Important ~~
Some customers bought this model with no problem when using with their Peavey transmitters, but some customers said the connector does plug in and make contact with the pins, and the headset / lapel mic sounds good, but it just sits high that the screw ring won't pick up on the threads on the body pack. Therefore, please be aware of this minor problem and only purchase when you feel fine with it.
Connector: Mipro Locking Mini 4 Pin Connector for Peavey or Mipro Wireless Microphone Systems
Compatible with:
- Peavey Transmitters: PCX-V12-B, PCX-U302-B
- Mipro Transmitters: ACT-707-TS (TE), ACT-801 TS (TE), MT103, MT303, MT801, MT808
Package Contents
- TCM141 Lavalier Microphone-Black Color
- Windscreen
- Slide-on Clip
- User Manual
- Packed by Color Box
(Wireless Receivers / Transmitters: NOT included)
